How to order roller conveyor?
1. Tell us the conveying products size and weight.
2. The length x width x height of the roller conveyor and the total loading weight.
3. The material and surface treatment: depending on the different working environment, decide the material and surface treatment (such as galvanized, stainless steel, chem-black or rubber lagging).
4. The frame material: stainless steel, painting coated. Roller: stainelss steel, steel galvanized, PVC ect.
Name: Gravity Conveyor Conveyor
Part Number: BCRC-500-400-3500-50-50
Roller diameter: 50mm
Pitch: 50mm
Width: 500mm x length 3500mm x height 400mm
Shell material: galvanized steel
We accept OEM
All rollers from our factory will be checked and tested before packing and delivery.
We are a leading factory in making roller conveyors, skate wheel conveyors, extended conveyors, belt conveyors, plastic modular belt conveyors, conveyor rollers, drum motors and parts for logistics equipments with well-equipped testing facilities and strong technical force. Because of our good quality, reasonable prices, quality packaging and stylish designs, our products are widely used in mining fields, food processing fields, modern warehouses, logistic center, airport and supermarket.
Our products are accepted by our customers and we are able to continuously develop economic and qualified products to meet all modern logistics needs.
Our Products are:
Belt conveyor
Types:
Groove belt conveyor, flat belt conveyor, climbing belt conveyor, turning belt conveyor, telescopic belt conveyor, inclined belt conveyor.
Advantage:
It works smoothly and no relative motion with articles to avoid damage when conveying. High efficiency, low noise, compact, easy to maintain, energy saving and cost saving.

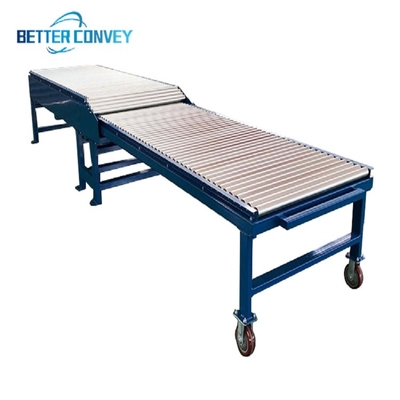

Roller conveyor
1. Types: gravity roller conveyors, driving roller conveyors, electric roller conveyors, inclined conveyors and turning conveyors.
2. The standard diameters are Φ20mm, 25mm, 32mm, 38mm,42mm, 50mm, 57mm, 60mm, 76mm, 89mm, 110mm, 130mm etc.
3. The diameter of the turning conveyors are 300mm, 600mm, 900mm, 1200mm.
4. Frame of conveyor: carbon steel painted, stainless steel or Aluminum.
5. Transmission mode: sprockets, O type belt, synchronous belt etc.
6. Speed: variable or constant.
Conveyor roller
1. Types: gravity rollers, driven rollers, electric rollers, accumulating rollers and taper curve rollers.
2. The diameters are from Φ18mm to Φ89mm,
3. Material: carbon steel, Aluminium, stainless steel, PVC etc
4. Application: convey light or middle units or heavy material like 1.5 ton pallets.
5. Assembling types: spring shaft, mortise, threaded, pin / hexagon / tube shaft.
6. Rubberized, PU lagged, galvanized, chromeplated.
Drum motors
Drum motors / Electric rollers for rolling conveyors, belt conveyers and for higher requirements.
The diameter: Ø38, Ø50, Ø60, Ø76, Ø80, Ø113, Ø138, Ø165, Ø216.
The power: from 15 W to 1.1 Kw. The speed: 1~300m/min. We also can OEM the rollers by the requirements.
Flying wheel conveyors have been widely used in need of often moving, requirements for light weight occasion with cheap, durable, not easy to be damaged and exquisite appearance.
Our flying wheels have follwing types:
1. Stamping metal flying wheels; 2. Cutting metal flying wheels; 3. POM flying wheels; 4. Rubberized flying wheels; 5. PE, ABS, Nylon wheels.
Spiral conveyor
Chain spiral conveyor, net belt spiral cooling conveyor, roller spiral conveyor, single and double spiral conveyor.
Double spiral conveyor has two parallel tracks, each of them is independently driven by a motor, which can work at different speed or in the opposite direction. It is more flexible.
