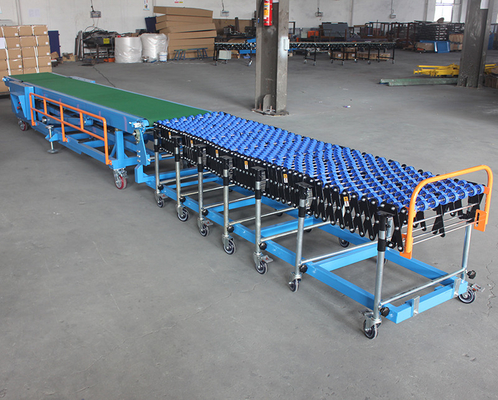

Dockless loading conveyor is quite welcome to automatically load or unload goods in and out of trailers/vans/truck/containers in warehouse,harbor,airport,dock,etc.it solves the problems of no shipping docks when loading or unloading.the mechanized operation largely increases work efficiency,relieves labor intensity and also reduces cost for modern enterprises in a side range of applications.it facilitates goods handing work and also provides advantages to advanced production,modernized mangement and safe operation.
| Model | Belt conveyor part | Tongue come into container | Belt width | Table width | Adjusted height | Dead weight | Speed | Power for conveying | Power for uplifting |
| DG-600 | 4.7m inclined belt conveyor | 6 section gravity wheel conveyorx Expandable range:2200~6900mm | 600mm | 800mm | 700~2500mm | 50kgs | 10~20m/min | 1.5kw | 2.2kw |
| DD-600 | 4.7m inclined belt conveyor | 4 section motorized roller conveyor Expandable range:1700~4200mm | 600mm | 800mm | 700~2500mm | 50kgs | 10~20m/min | 1.5kw | 2.2kw |
More parameters can be customized accordance with your requests.
1.Dockless loading conveyor consists of two parts:flexible tongue into container and inclining belt conveyor,they can work independently,
Tongue into container have two style:
1) "6-sections flexible gravity skate wheel conveyor" Model: DG-600
2) "4-section flexible motorized roller conveyor"DD-600
2. This item can be extended through end connectting the others items by hook,so that the goods can reach the place;
1) The end can be connectted "roller conveyor"
2) The end can be connectted "wheel conveyor"
3) The end can be connectted "belt conveyor"
3.Material of belt is 3mm thickness anti-skidding PVC belt;
4.This items with two motors,one motor for conveying goods,power is 1.5kw;the other motor for uplifting,power is 2.2kw;conveyor lift up and down through screw.
5.The height adjustable range of incline belt conveyor is 700~2500mm,
so this item conveyor suit to be used in the loading place where has no platform,
