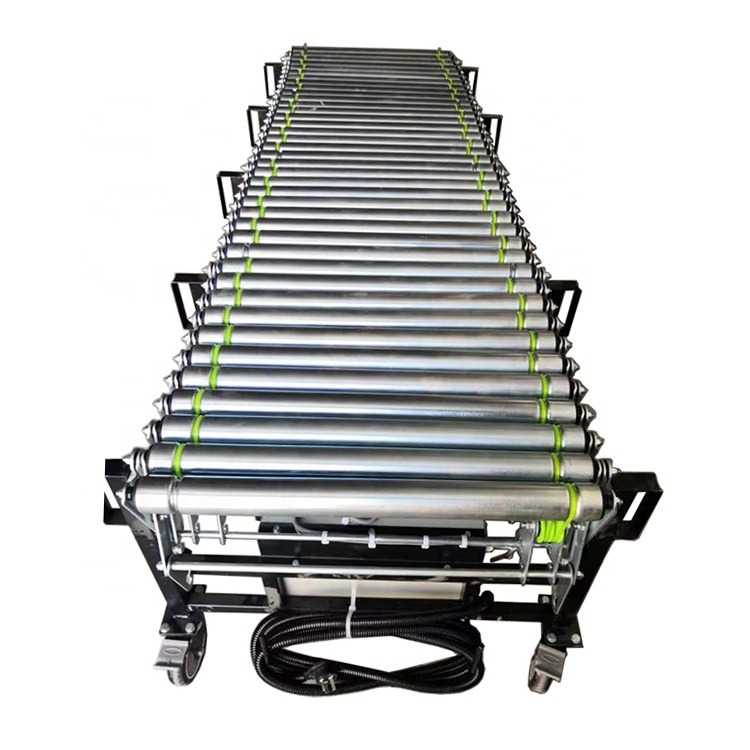

Powered flexible expandable roller conveyor
APPLICATION
Product application: the power roller telescopic conveyor line is widely used in product packaging, production line assembly, cargo handling and other areas, suitable for the transportation of various boxes, bags, pallets and other items.
It is suitable for large and small workshops, organic farms, large and medium-sized logistics distribution, supermarkets, food processing plants, chemical plants, warehouses and other places. It is suitable for conveying products with flat bottom, such as box objects, bucket objects, turnover boxes, etc. it can be perfectly combined with the load and unloading machine to form a complete logistics transmission line.
Advantages: low cost, simple structure, convenient maintenance, reliable operation, strong transmission capacity.
|
Name |
Power roller conveyor |
non-power roller conveyor |
powered retractable roller conveyor |
non-power retractable roller conveyor |
Light Roller Conveyor Line |
|
Products Model |
SQ-GT100-1 |
SQ-GT100-2 |
SQ-GT100-3 |
SQ-GT100-4 |
SQ-GT100-5 |
|
Run mode |
Flat loop |
||||
|
Power |
400W-5.5KW |
||||
|
Height |
400MM-950MM |
||||
|
Load-bearing(Single) |
1-500KG |
||||
|
Motor Power |
400W-5.5KW |
||||
|
Conveyor Speed |
5-15m/min |
||||
|
Length of the assembly line |
custom-made |
||||
|
Speed adjustment mode |
Frequency Control |
||||
|
Frame Material |
Iron square tube /Aluminium profile |
||||
|
Tooling plates material |
Plank/PVC/Aluminium / Stainless steel plate |
||||
Product features -
A. This product uses the belt type drive metal roller, the appearance is exquisite. The expansion ratio of the product is 1:3. If the total length of the product is 3 meters, it will be 1 meter after shortening, which is convenient for customers to reduce the floor space without using.
B. Adjustable height, adjustable range of 450mm-2300mm, suitable for loading and unloading of various models, the product has a large bearing capacity, the maximum bearing can reach 30kg, which is basically used in most cases of box conveying.
C. The product can turn 360 degrees but needs to reach 12 modules. The product can be upshifted to prevent the object from running off.
D. The product adopts power transmission, which can be reversed and reversed - convenient for customers' loading and unloading, stable operation and low noise
E. The product adopts modular design, which is convenient for users to expand the product length and change the product length demand later. The product speed can be adjusted, which is convenient for customers' different transportation requirements.
F. The product is solid and durable, with a normal service life of 4-5 years, low maintenance cost, less maintenance time, convenient movement and universal caster and brake device, which is convenient for use in various indoor and outdoor places.
Workplace and Products Packing
Packing Details : wooden case / no packing
Delivery Date : 20 days after order
FAQ
1. Q: Hi, are you a manufacturer?
A: Yes, we are. We are a Chinese assembly line manufacturer. Our factory is located in the south of China; No. 20, Xianzhuang Road, Shangcun Community, Gongming Street, Guangming New District, Shenzhen City China.
2. Q: What’s your primary business?
A: Our mainly business: belt conveyor line, roller conveyor line.
