Home /Products/Powered Roller Conveyor/Fire Resistant Flexible Expandable Gravity Skate Wheel Steel Roller Conveyor

Fire Resistant Flexible Expandable Gravity Skate Wheel Steel Roller Conveyor

1 Set
MOQ
$900.00(1 - 4 Sets) $500.00(>=5 Sets)
Price
Fire Resistant Flexible Expandable Gravity Skate Wheel Steel Roller Conveyor
Features Gallery Product Description Request A Quote
Features
Specifications
Applicable Industries: Garment Shops, Building Material Shops, Machinery Repair Shops, Manufacturing Plant, Food & Beverage Factory, Farms, Retail, Food Shop, Printing Shops, Construction Works , Energy & Mining, Food & Beverage Shops, Advertising Company,
Showroom Location: None
Condition: New
Material: Carbon Steel
Material Feature: Fire Resistant
Structure: Roller Conveyor
Place Of Origin: China
Brand Name: YiFan
Power: No Power
Dimension(L*W*H): L6900*W600*H700/1000 Mm
Warranty: 1 Year
Width Or Diameter: Size Customization
Machinery Test Report: Not Available
Video Outgoing-inspection: Provided
Marketing Type: Hot Product 2020
Warranty Of Core Components: 1 Year
Core Components: Roller, Wheel
Extendable Length: 2220-6900mm
Adjustable Height: 700-1000mm
Effective Width: 600mm
Load Capacity: 40kg/m
Wheel Diameter: 50mm
Wheel Material: Steel
Roller Center Gap: Max.120mm
Side Frame: 2.5mm Thickness Steel Plates
Supporting Legs: Galvanized Round Steel Tubes
Caster: 4'' Swivel Lockable Caster
After Warranty Service: Video Technical Support, Online Support, Spare Parts
Local Service Location: None
After-sales Service Provided: Online Support
Basic Infomation
Place of Origin: China
Brand Name: YiFan
Payment & Shipping Terms
Packaging Details: PALLET , WOODEN CASE
Supply Ability: 200 Set/Sets per Month
Product Description
Product Overview

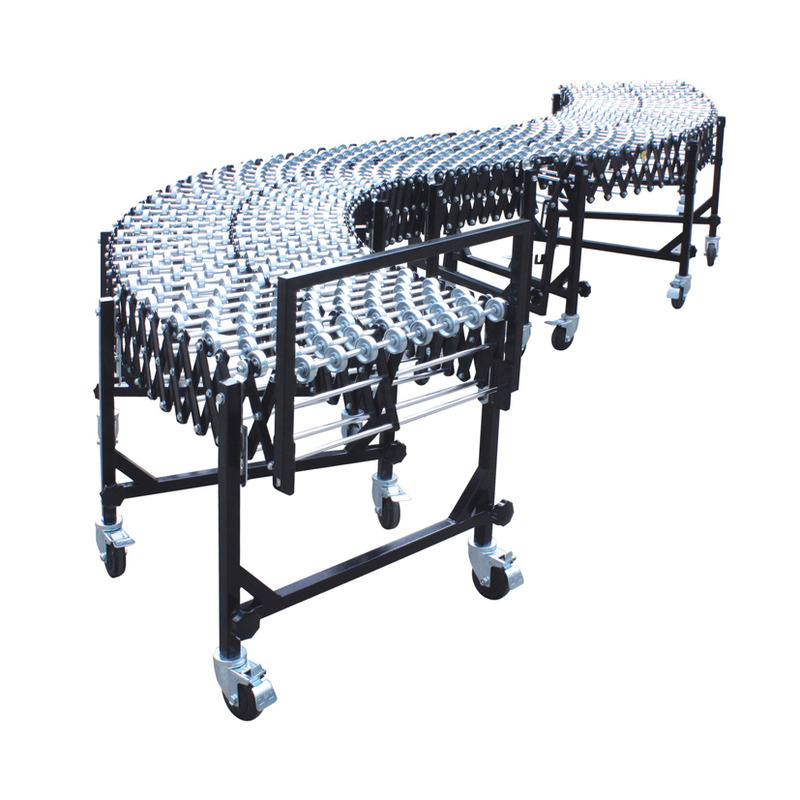

FGW-S6 Flexible Skate Wheel Gravity Conveyor

Flexible Skate Wheel Conveyor is often chosen to convey small & medium sized flat-bottom items in harbor, dock,
warehouse/storehouse, factory, etc.It is extendable, retractable and bendable. It can take curve flexibly even in zigzag narrow aisles. The crossed skate wheels make sure that conveyed goods will be automatically oriented and not fall down from sides. The skate wheel conveyor largely facilitates goods delivery work.
Technical Parameters
Effective Width
600mm
Overall Width
750mm
Adjustable Height
700-1000mm
Extendable Length
2220-6900mm
Load Capacity
40kg/m
Caster
4" swivel lockable casters
Side Links
2.5mm thickness powder coated join plates

Features

1.Rugged heavy duty self-tracking skate wheels with enclosed steel ball bearings offer smooth material flow
2.Axle centers variable from 1-1/4" to 4" for 7" minimum package size
3.40kg per linear meter load capacity
4.Heavy duty powder coated steel side plates ensure maximum strength and durability.
5.Includes convenient end box-stop and hooks to connect additional conveyors.
6.Adjustable height achieve maximum gravity flow and create banked curves:700-1000mm as standard,800-1200mm (31-1/2" to 47-1/4") as option.
7.Simply insert galvanized telescopic leg sets into integral sockets.
8.Easy to move around on Dia 100mm(4") heavy duty lockable swivel polyurethane casters.
9.Can be made in custom lengths to suit your individual conveying application
Details Image
Easy to take a 180 degree curve
Extendable and expandable
Perfect to transport cartons
End package stop guard is available
50mm diameter galvanized steel wheels
Telescopic steel side links
Adjustable Height: 700-1000mm
Each unit with hooks to quickly joint tow units together
Mobile on 4" swivel casters with brakes
Successful Project



Company Profile
FAQ
Please feel free to contact us at sales02@yfconveyor.com if you have any other questions.
How long is the production time?
YIFAN: flexible conveyor takes 1-2 weeks; truck loading conveyor and telescopic belt conveyor takes 3-4 weeks

What is the MOQ?
YIFAN: 1 unit

Can your company provide OEM & ODM service？
YIFAN: yes

Can you do customized conveyors?
YIFAN: yes

Do you offer installation service abroad?
YIFAN: yes

What is the payment terms?
YIFAN: T/T,LC,

What is the delivery port?
YIFAN: Ningbo/Shanghai

How many years have you been in this industry?
YIFAN: 10 years

What is the HS code?
YIFAN: 84283300,84283920,84283990

Is YIFAN a trading company or factory?
YIFAN: we are a trading company but have long-term cooperation factory, who only supply from us.

Which industry can your conveyors be applied to?
YIFAN: our conveyors are widely used in the logistics center, industrial production workshop, storage warehouse. Many of our clients hail from the e-commerce, express, food, beverage, garment, textile, furniture and home appliances industry.

How many countries have you exported to?
YIFAN：: United States, India, Bangladesh, UAE, Kenya, Indonesia, Pakistan, Malaysia, Thailand, Sri Lanka, the Philippines, Saudi Arabia, Singapore, France, Canada, etc.
