Heat Resistant Scraper Conveyor Grade Bulk Scrap Metal Handling Sorting Slat Drag Pallet Chain Belt Conveyor

1.0 Pieces
MOQ
Heat Resistant Scraper Conveyor Grade Bulk Scrap Metal Handling Sorting Slat Drag Pallet Chain Belt Conveyor
Features Gallery Product Description Request A Quote
Features
Specifications
Applicable Industries: Building Material Shops, Manufacturing Plant, Construction Works , Other
Showroom Location: None
Condition: New
Material: Aluminium
Material Feature: Heat Resistant
Structure: Other
Place Of Origin: China
Brand Name: TG
Power: Other
Warranty: 1 Year
Width Or Diameter: Other
Machinery Test Report: Not Available
Video Outgoing-inspection: Not Available
Marketing Type: New Product 2020
Warranty Of Core Components: 1 Year
Core Components: Filter Bag
Weight (KG): 2000 Kg
Product Name: Filter Bag
Basic Infomation
Place of Origin: China
Brand Name: TG
Payment & Shipping Terms
Product Description
Product Description

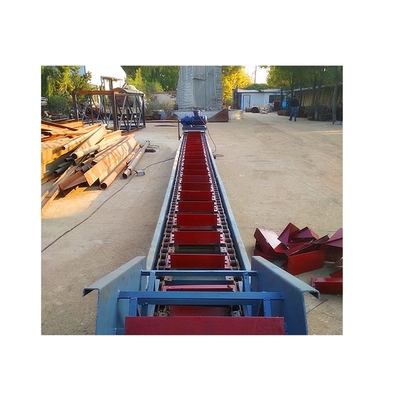

Scraper conveyor

The conveyor that is pulled by the scraper chain and transports the bulk material in the tank is called the scraper conveyor . KS scraper conveyor The adjacent middle grooves of the scraper conveyor can be bent to a limited extent in the horizontal and vertical planes, which are called flexible scraper conveyors . Among them, the working face conveyor with the fuselage bent at 90 degrees at the intersection of the working face and the transport roadway is called "corner scraper conveyor".
The main structure and components of various types of scraper conveyors are basically the same. It consists of three parts: the nose , the middle and the tail.
In addition, there are accessories such as hydraulic jacks for push conveyors and chain tensioners for chain tensioning. The head of the machine is composed of a head frame, a motor, a hydraulic coupler , a reducer and a sprocket. The middle part is composed of transition groove, middle groove, chain and scraper. The tail of the machine is a device for the return of the scraper chain.
The tail of the heavy-duty scraper conveyor is also equipped with a power transmission device like the head, which is called the upper head and the lower head according to the installation position. Classification
According to the arrangement and structure of the chute of the scraper conveyor, it can be divided into two types: parallel type and overlapping type. According to the number and arrangement of chains, it can be divided into four types: single chain, bilateral chain, double center chain and triple chain.
practical application Scraper conveyors
can be used for horizontal transport as well as inclined transport. When transporting upward along the inclination, the inclination angle of the coal seam shall not exceed 25°, and when transporting downward, the inclination angle shall not exceed 20°. The flexible scraper conveyor allows 2°~4° bending in the horizontal and vertical directions.
working principle
The working principle of the scraper conveyor is that the open chute is used as a bearing member for coal, gangue or materials, and the scraper is fixed on the chain (composed of a scraper chain) as a traction member. When the head drive part is started, the sprocket on the head shaft is driven to rotate, so that the scraper chain circulates and drives the material to move along the chute until it is unloaded at the head. The scraper chain bypasses the sprocket for a stepless closed cycle operation to complete the conveying of materials.
Specification
Name
slide gate valve
Brand
TG
MOQ
1
Port
shanghai
Company Profile
Our company is founded in 2003. We are a hi-tech enterprise integrating the design, manufacture and construction of environmental products. Our company has strong technical strength, advanced technology, excellent equipment. With wide prospect of market, our products are widely used all over the country and exported abroad. For years, our high quality products, competitive price, excellent services have won great trusts from them. Our major products are dust collector devices such as bag house dust collector, cartridge type dust collector, cyclone dust collector. We can also supply water treatment equipment, acid mist spray tower, boiler desulfurization and denitration equipment, boiler auxiliaries. We can design and produce environmental protection products according to our customers’ require. Our products are widely used in building material, petrochemical industry, mechanical metallurgy, non-ferrous metal, steel, battery, boiler, various kilns and other industries. Till now we have won great reputation from our clients.
Packing & Delivery
Certificate
FAQ
Q1. Why choose us? A. We have been producing products for over 20 years. What we offer is a good product at a reasonably price. Q2. Can I customize the product? A. Abosolutely. We can customize products according to your design and make your own brand logo. Also we can the package the products according to your request. We can also accept OEM orders.
Q3. Can I have free samples? A. Sorry, we cannot provide samples, we can design suitable products according to your requirements. Q4. What's the delivery time? A. 30 days after deposit. Q5.How to order? A. Inquiry → Quotation → Negotiation → PO/PI → Mass production →Book Space → Balance/Deliver → Further.
