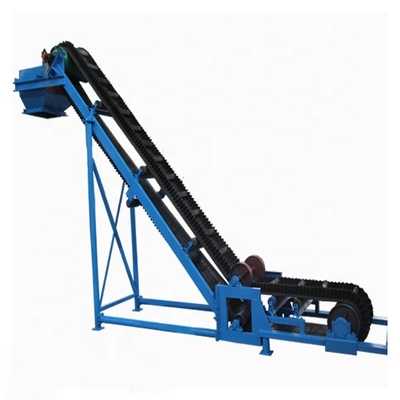

Auger Flight Forming Machine Ghe Sewing Portable Inclined Belt Conveyor
Flexowell vertical sidewall belt conveyor (also called large dip corrugated belt conveyor) with a large inclination (90 degrees vertical) transport. So that it is ideal equipment for achieving large angle conveying. Widely adopted in underground mining projects, open pit mining, large dump trucks and other parties.
|
Sidewall height |
Cleat pitch |
Slant angle |
||||||
|
30° |
40° |
50° |
60° |
70° |
90° |
|||
|
mm |
mm |
mm |
Capacity(m3/h) Speed of belt=1m/s |
|||||
|
500 |
120 |
252 |
52 |
40 |
32 |
26 |
21 |
- |
|
160 |
378 |
65 |
52 |
42 |
34 |
28 |
17 |
|
|
650 |
120 |
252 |
78 |
60 |
48 |
39 |
32 |
- |
|
160 |
378 |
73 |
56 |
45 |
36 |
30 |
- |
|
|
800 |
120 |
129 |
99 |
76 |
60 |
49 |
40 |
- |
|
200 |
378 |
148 |
114 |
91 |
74 |
61 |
37 |
|
|
1000 |
160 |
378 |
129 |
99 |
79 |
64 |
52 |
- |
|
240 |
504 |
229 |
176 |
141 |
- |
- |
- |
|
|
1200 |
160 |
252 |
223 |
180 |
144 |
117 |
96 |
59 |
|
240 |
378 |
342 |
280 |
224 |
183 |
149 |
91 |
|
|
1400 |
200 |
252 |
299 |
231 |
185 |
151 |
123 |
75 |
|
240 |
378 |
422 |
345 |
276 |
225 |
184 |
113 |
|
About Yingda:
Henan Province Yingda Machinery Manufacturing Co., Ltd is professional manufacturer for bucket elevator and conveyors in China. We have professional engineers and experienced workers in our factory, we ensure that we supply good quality and good price to our customers.
Our products as followings:
1. Bucket elevators: TD Belt type bucket elevator, TH round chain type bucket elevator, NE plate chain bucket elevator and Dehydrated bucket elevator.
2. Screw conveyors: Pipe type screw conveyor, U-shape screw conveyor, shaftless screw conveyor and screw feeder.
3. Belt conveyors: Fixed belt conveyor, mobile belt conveyor, sidewall belt conveyor and light type belt conveyor.
4. Chain conveyors: FU chain conveyor, drag conveyor, scraper chain conveyor and Cast stone scraper conveyor etc.
5. Apron feeders: Light duty apron feeder, middle duty apron feeder and heavy duty apron feeder.
6. Other products: Pan conveyor, Vibrating screen, Trommel screen air slide conveyor, vibrating feeder, rotary feeder and double shaft mixer etc.
7. Spare parts: Elevator bucket, conveyor chain, sprocket, conveyor belt, conveyor roller, feeder pan, motor, gearbox and bearing and etc.
1. Are you factory or trading company?
We are 30+ years manufacturing experience conveyor factory.
2. Do you provide design for us?
Yes, we will provide engineer design service before order.
3. What's the delivery time?
15-25 days.
4. Do you provide installation service?
Yes, we will send our engineer go to your working site to guide installation and commissioning.
5. Payment terms?
TT, LC.
