Home /Products/Heavy Duty Gravity Conveyor/Oil Resistant Telescopic Gravity Plastic Skate Wheel Unloading Conveyor

Oil Resistant Telescopic Gravity Plastic Skate Wheel Unloading Conveyor

1 Set
MOQ
$800.00(>=1 Sets)
Price
Oil Resistant Telescopic Gravity Plastic Skate Wheel Unloading Conveyor
Features Gallery Product Description Request A Quote
Features
Specifications
Applicable Industries: Hotels, Garment Shops, Building Material Shops, Machinery Repair Shops, Manufacturing Plant, Food & Beverage Factory, Farms, Restaurant, Home Use, Retail, Food Shop, Printing Shops, Construction Works , Energy & Mining, Food & Bevera
Showroom Location: None
Condition: New
Material: Plastic
Material Feature: Oil Resistant
Structure: Conveyor System
Place Of Origin: NINGBO,China
Brand Name: YiFan
Voltage: No Power
Power: Other
Dimension(L*W*H): Variable
Warranty: 1 Year
Width Or Diameter: 600mm
Machinery Test Report: Provided
Video Outgoing-inspection: Provided
Marketing Type: Hot Product 2019
Warranty Of Core Components: 1 Year
Core Components: Motor, Bearing
Weight (KG): 300 Kg
Length: Adjustable
Height: 700-1000mm
Max. Loading: 40kg/m
Materials: Plastic Wheel
Usage: Unloading Carton
After Warranty Service: Video Technical Support, Online Support
Local Service Location: None
After-sales Service Provided: Free Spare Parts
Certification: ISO,CE
Basic Infomation
Place of Origin: NINGBO,China
Brand Name: YiFan
Certification: ISO,CE
Payment & Shipping Terms
Product Description
Product Overview

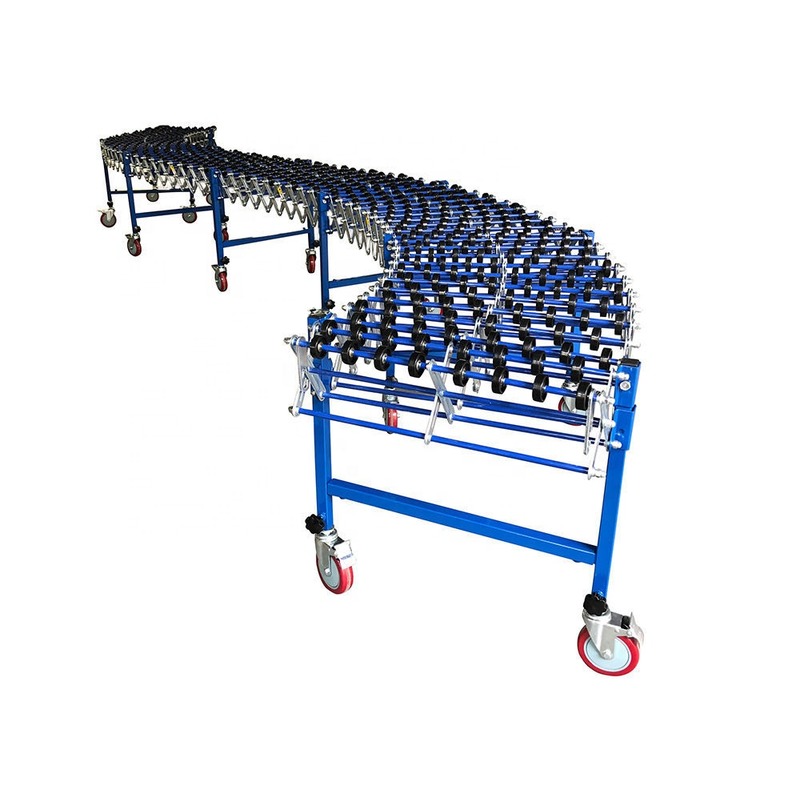

FGW-P6 Flexible Skate Wheel Gravity Conveyor

Flexible Skate Wheel Conveyor is often chosen to convey small & medium sized flat-bottom items in harbor, dock,
warehouse/storehouse, factory, etc.It is extendable, retractable and bendable. It can take curve flexibly even in zigzag narrow aisles. The crossed skate wheels make sure that conveyed goods will be automatically oriented and not fall down from sides. The skate wheel conveyor largely facilitates goods delivery work.
Technical Parameters
Effective Width
600mm
Overall Width
750mm
Adjustable Height
700-1000mm
Extendable Length
2220-6900mm
Load Capacity
40kg/m
Caster
4" swivel lockable casters
Side Links
2.5mm thickness powder coated join plates

Features

1.Rugged heavy duty self-tracking skate wheels with enclosed steel ball bearings offer smooth material flow
2.Axle centers variable from 1-1/4" to 4" for 7" minimum package size
3.40kg per linear meter load capacity
4.Heavy duty powder coated steel side plates ensure maximum strength and durability.
5.Includes convenient end box-stop and hooks to connect additional conveyors.
6.Adjustable height achieve maximum gravity flow and create banked curves:700-1000mm as standard,800-1200mm (31-1/2" to 47-1/4") as option.
7.Simply insert galvanized telescopic leg sets into integral sockets.
8.Easy to move around on Dia 100mm(4") heavy duty lockable swivel polyurethane casters.
9.Can be made in custom lengths to suit your individual conveying application
Details Image
skate wheel
caster
50mm diameter steel wheels
Easy to take a 180 degree curve
End package stop guard is available
Each unit with hooks to quickly joint tow units together
Successful Project



Company Profile
FAQ
Please feel free to contact us at sales02@yfconveyor.com if you have any other questions.
How long is the production time?
YIFAN: flexible conveyor takes 1-2 weeks; truck loading conveyor and telescopic belt conveyor takes 3-4 weeks

What is the MOQ?
YIFAN: 1 unit

Can your company provide OEM & ODM service？
YIFAN: yes

Can you do customized conveyors?
YIFAN: yes

Do you offer installation service abroad?
YIFAN: yes

What is the payment terms?
YIFAN: T/T,LC,

What is the delivery port?
YIFAN: Ningbo/Shanghai

How many years have you been in this industry?
YIFAN: 10 years

What is the HS code?
YIFAN: 84283300,84283920,84283990

Is YIFAN a trading company or factory?
YIFAN: we are a trading company but have long-term cooperation factory, who only supply from us.

Which industry can your conveyors be applied to?
YIFAN: our conveyors are widely used in the logistics center, industrial production workshop, storage warehouse. Many of our clients hail from the e-commerce, express, food, beverage, garment, textile, furniture and home appliances industry.

How many countries have you exported to?
YIFAN：: United States, India, Bangladesh, UAE, Kenya, Indonesia, Pakistan, Malaysia, Thailand, Sri Lanka, the Philippines, Saudi Arabia, Singapore, France, Canada, etc.
